ＲＡＣＣＯＯＮ－Ｓ Basket type metal washer
Basket type RACOON-S. Washing program can be set freely to meet customers’ needs. You can choose from three versatile models.

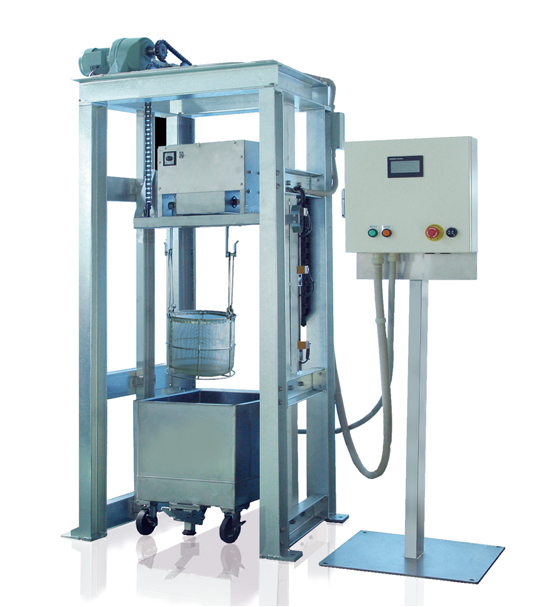

Just right capacity with the single model

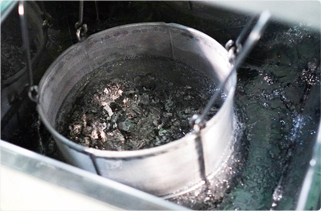

The damage to the washed items is greatly reduced as it oscillates inside a fluid.

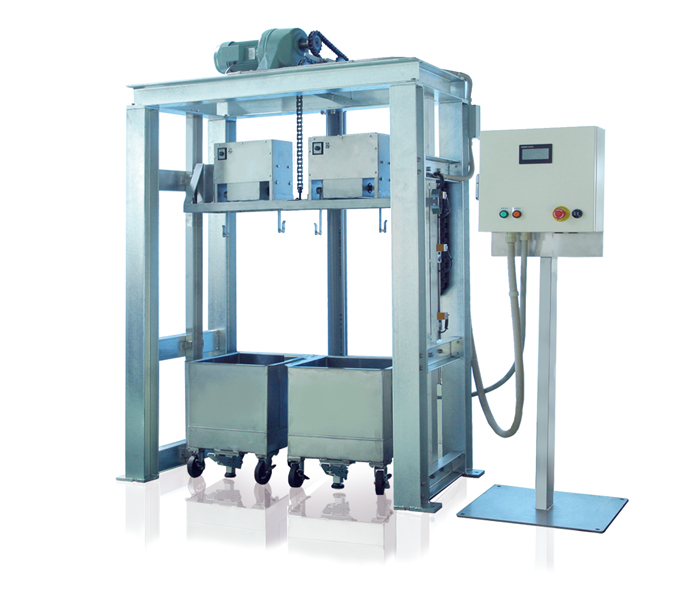

The twin model provides enough capacity

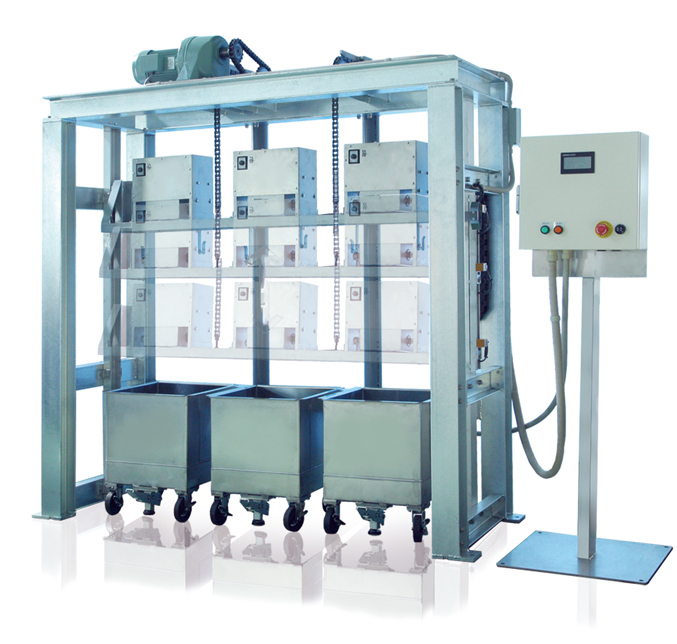

Plenty capacity with the triple model

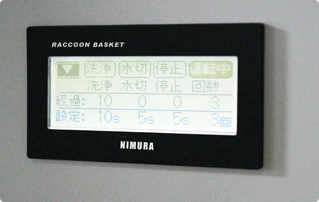

- Initialisation of the specialised program according to the customerʼs needs.

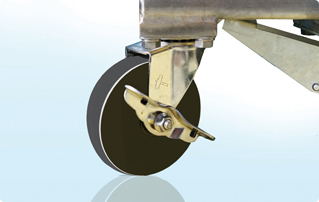

- As it includes a tank with a caster,fluid exchange and process switching are also handled easily.

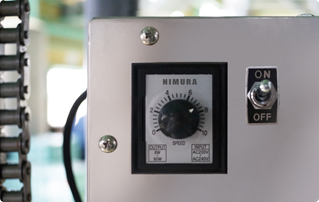

- Fine adjustment of the oscillation speed with a speed knob.

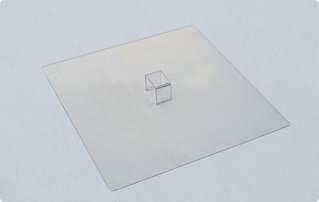

- Reduce the evaporation of volatile liquids such as alcohol with the specilised cover.
- The washer can also be used for drying by adding heater.
Futhermore by adding micro-bubble and ultrasonic wave devices,
it can handle even difficult washing condition.
※Heaters, micro bubble generators and ultrasonic wave devices are options.
The washing baskets are made to order according to your requests.
RACCOON-S can be ordered semi-custom even in types that are not in the catalog.
| RACCOON-S Specification Guide |
| TYPE |
Basket Type Metal Washer |
| COLOUR |
Silver or Specified Colour by Customer |

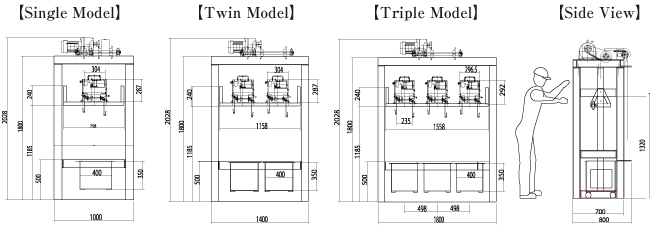

| SIZE |
Single Model |
W1000*H2028*D800 |
| Twin Model |
W1400*H2028*D800 |
| Triple Model |
W1800*H2028*D800 |
| Noise Level |
Approx. 90dB |
| Weight |
【Single】250㎏【Twin】480㎏【Triple】710㎏ |
| Voltage Source |
AC200V（Voltage Source can be changed at additional cost） |
- All spec data given above is for guide purpose only.
- Actual capacity depends on the shape/size of the product and how much washing it need.
- Electrical work on the factory side is not included.
- Heaters, microbubble generators, and ultrasonic wave devices are options.
- Keep the machine away from oil mist and do not use it in air that contains oil mist.
- All data provided here can be changed depending on the environment, temperature and washing needs of the product.This is not performance guarantee.
- Alkali and acid types cannot be used simultaneously.
